CaliberX IIIA Wrap Around Soft Body Armor Panels

CaliberX Wrap Around Soft Body Armor Panels – NIJ Level IIIA / HG2 Protection

Lightweight wraparound soft body armor with full front, rear, and side protection — proudly made in the USA.

The CaliberX Wrap Around Soft Body Armor Panels are engineered for professionals and civilians who need comfortable, reliable ballistic protection during extended wear. Designed to fit seamlessly into our Covert Vest, Modular Overt Defense (M.O.D.), and Patrol carriers, these NIJ Level IIIA / HG2 soft armor panels provide flexible wraparound coverage without restricting movement.

Built using proprietary Caliber Armor materials, CaliberX soft armor flexes naturally with the body for enhanced mobility, reduced fatigue, and all-day comfort. Whether worn concealed under clothing or configured in an overt tactical setup, these lightweight ballistic panels deliver dependable handgun protection in demanding environments.

Choose between CaliberX Core or CaliberX Pro soft armor based on your preferred balance of thickness, weight, and low-profile performance.

What’s Included

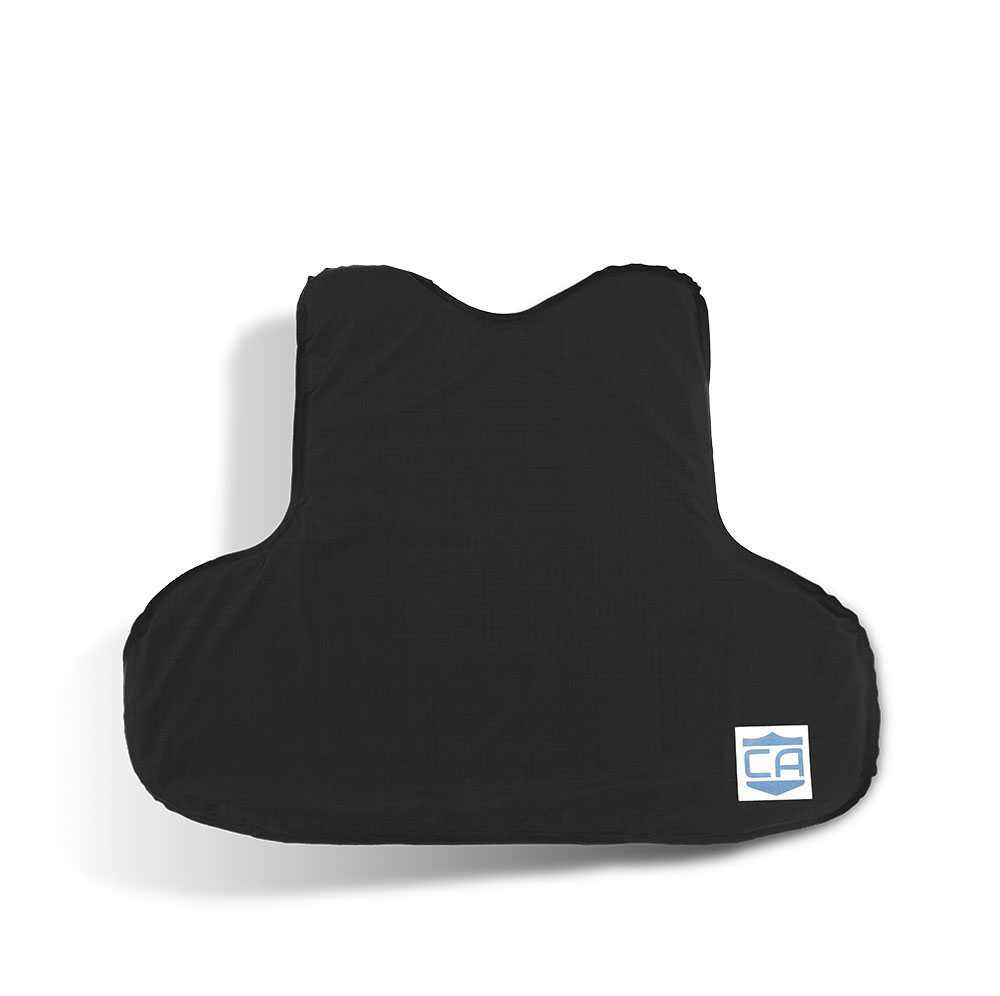

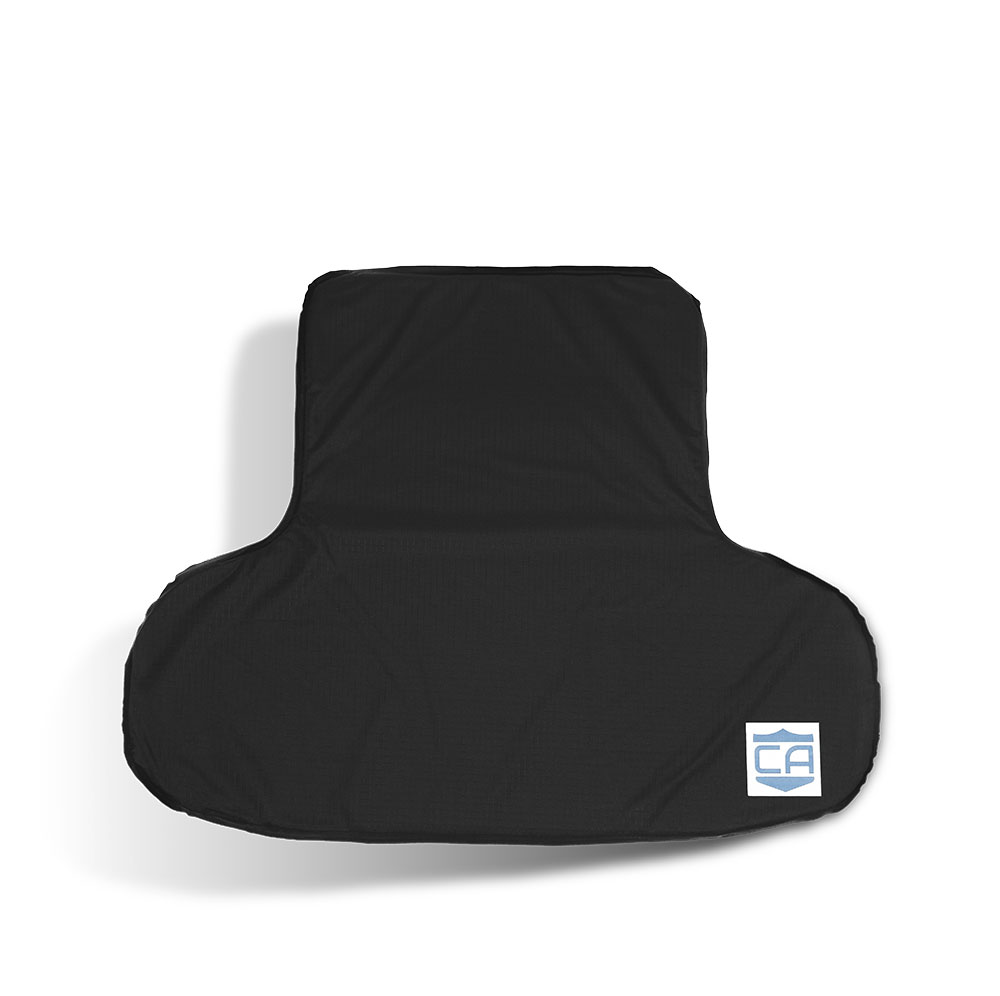

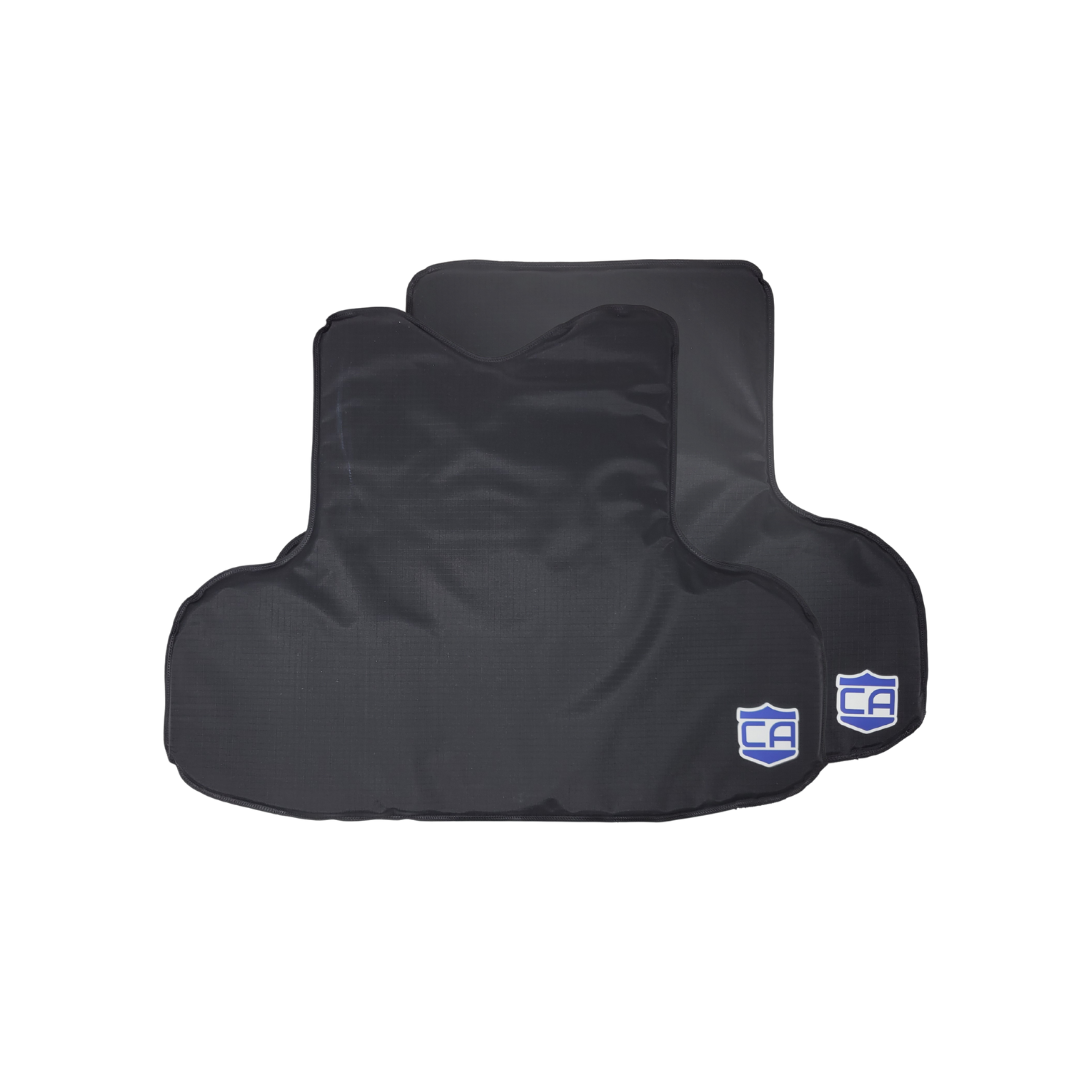

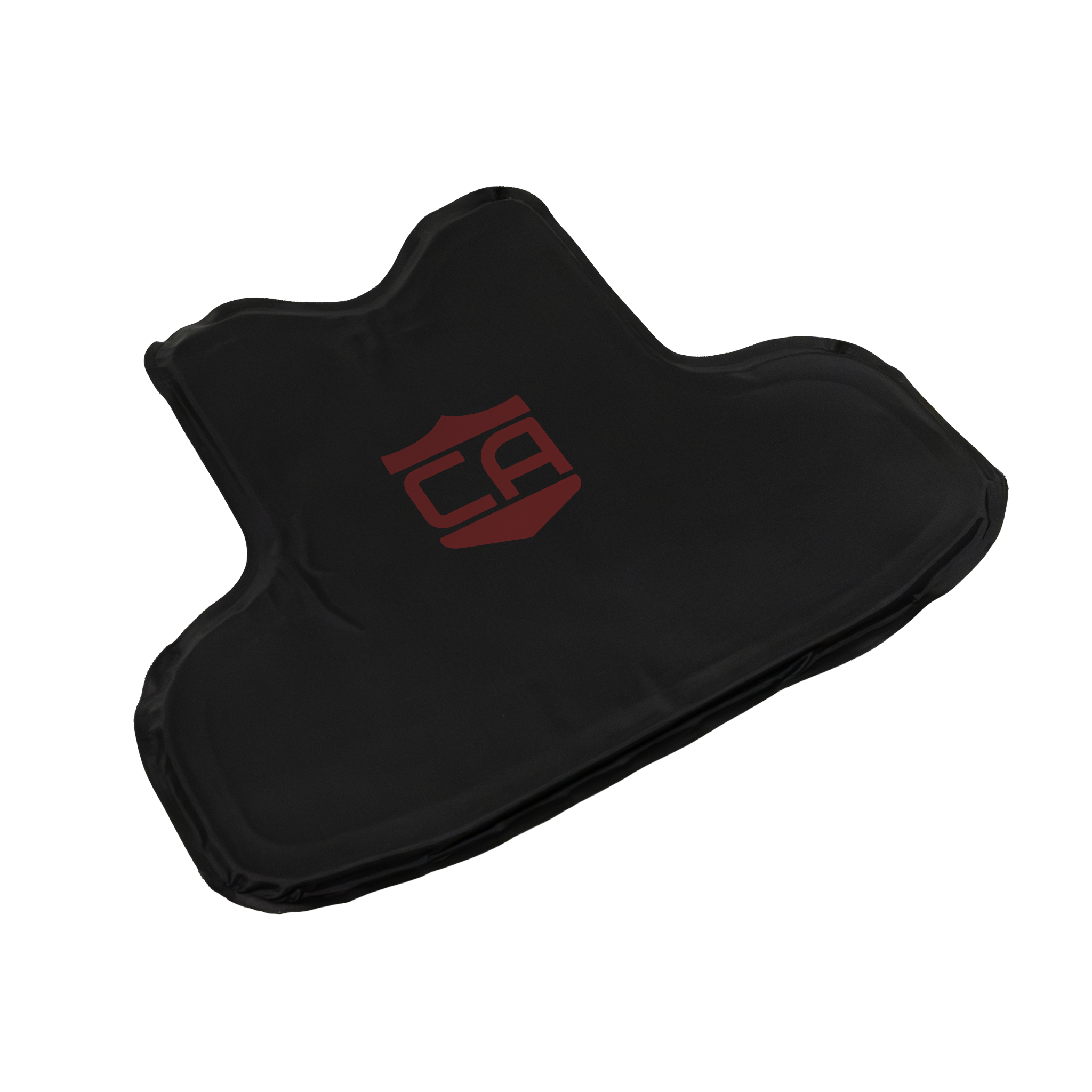

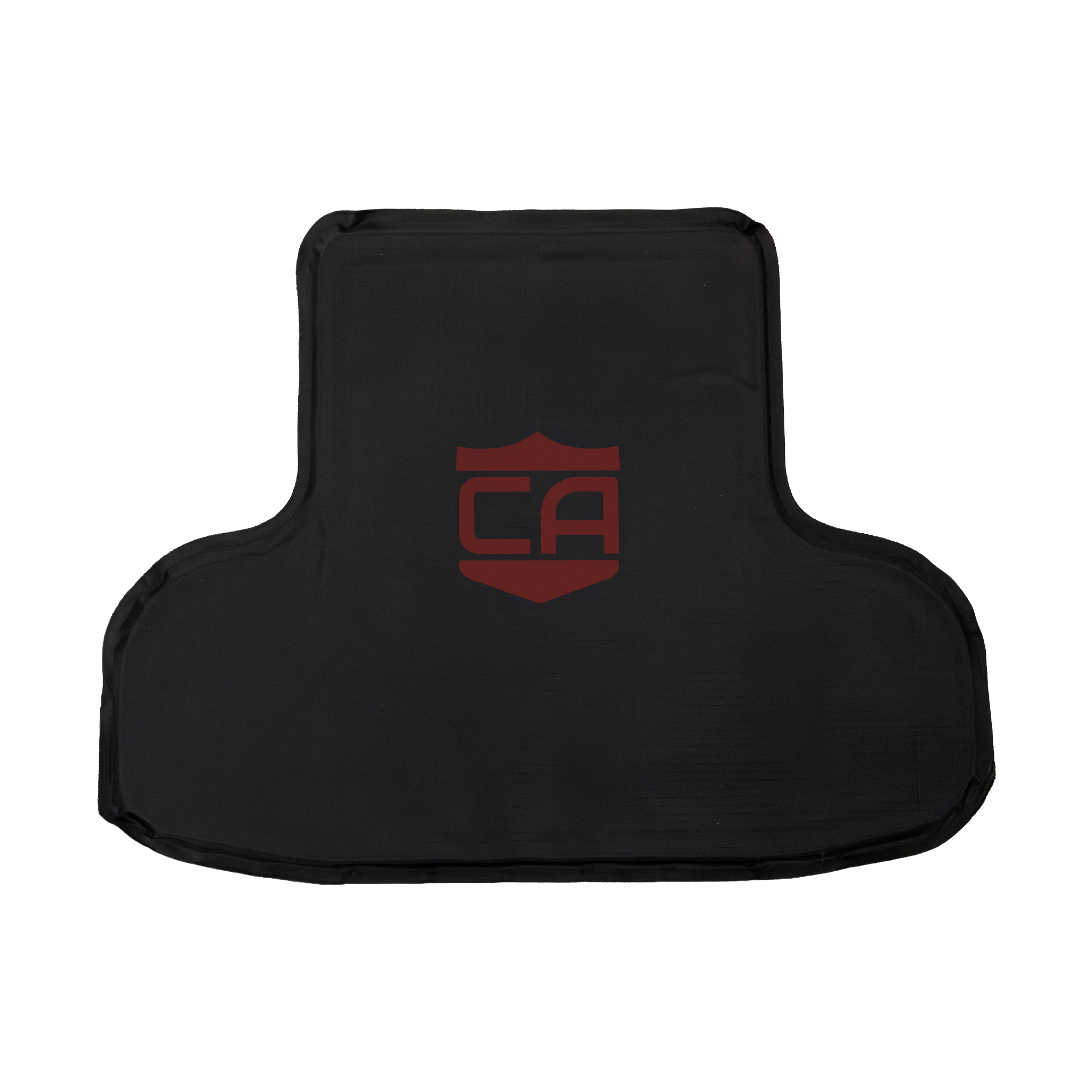

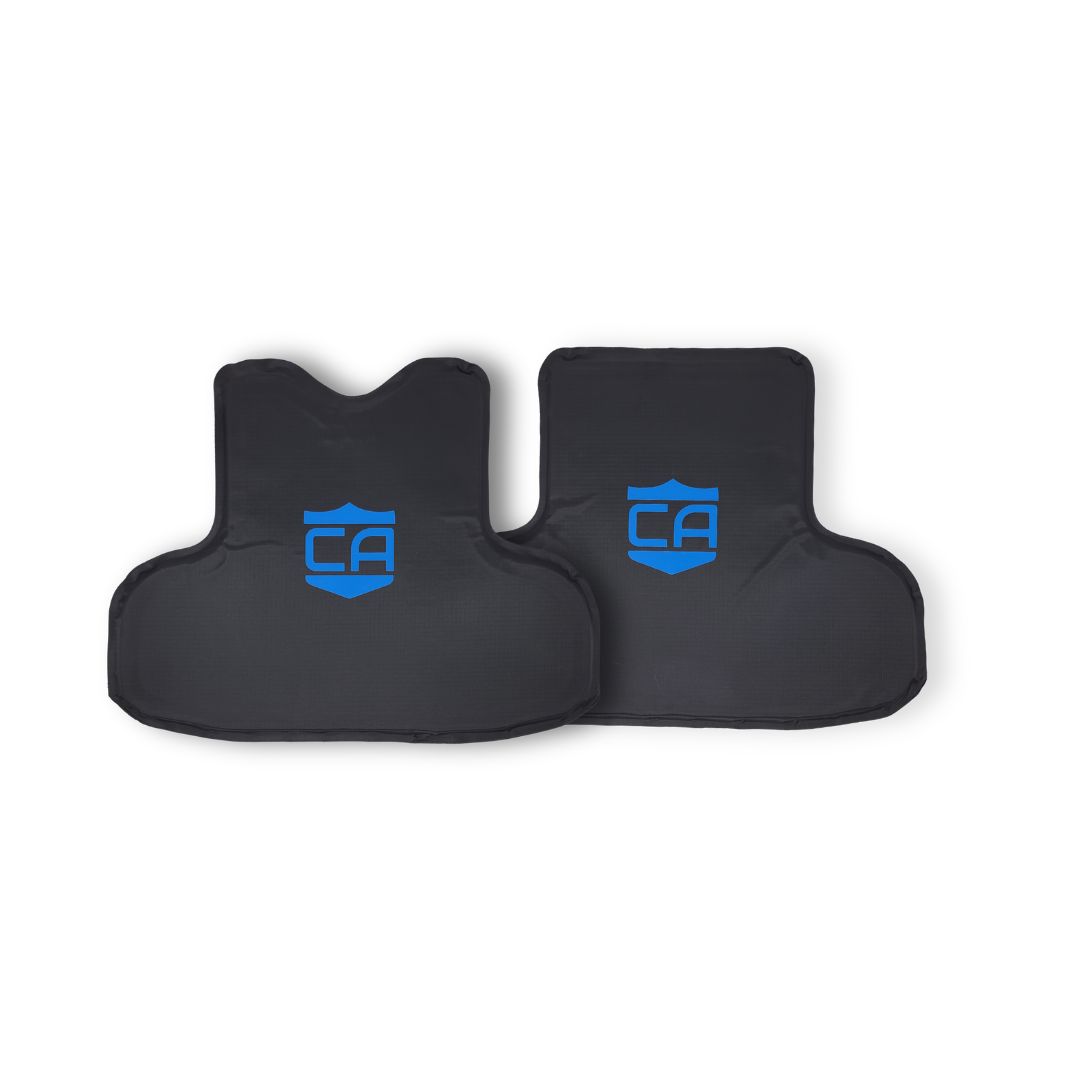

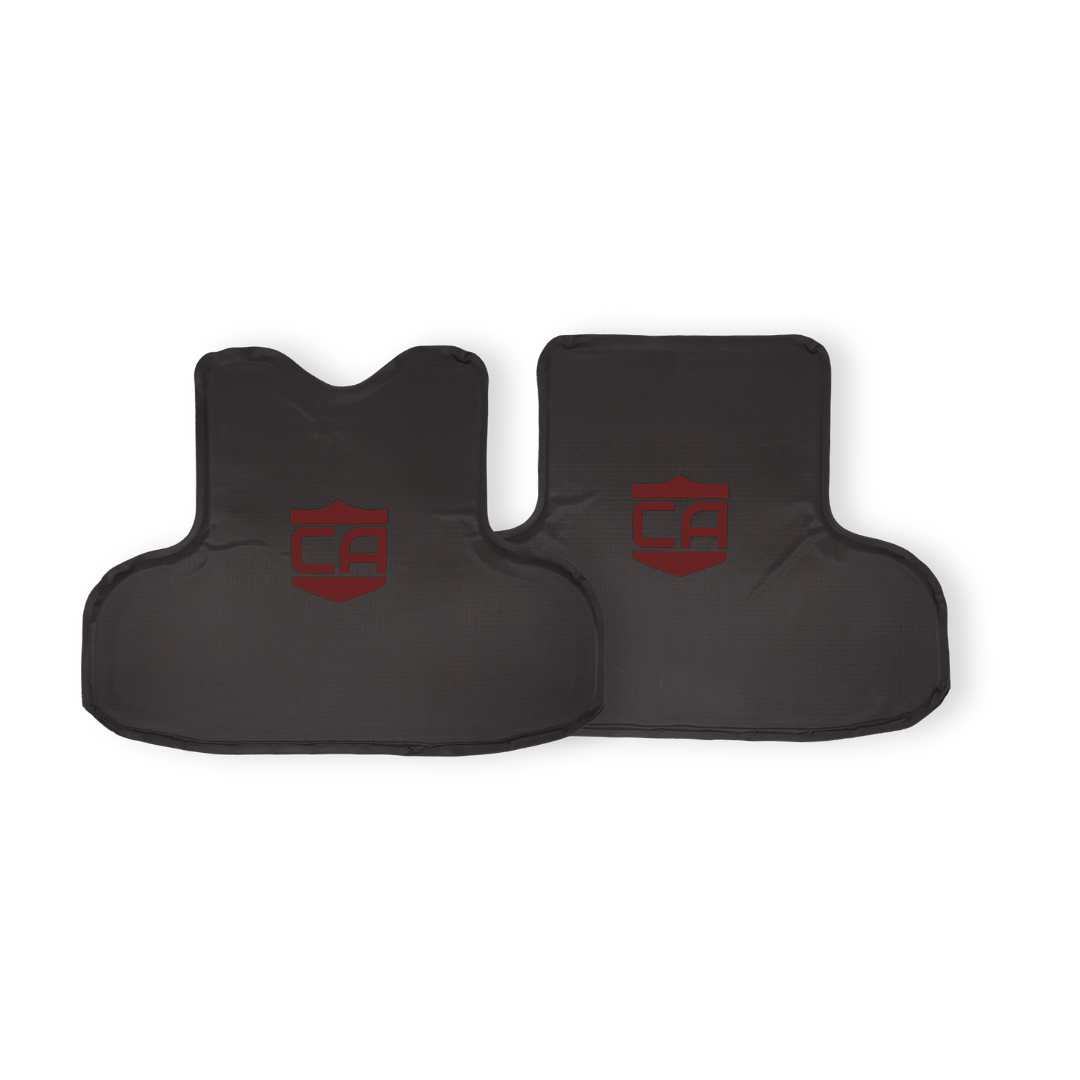

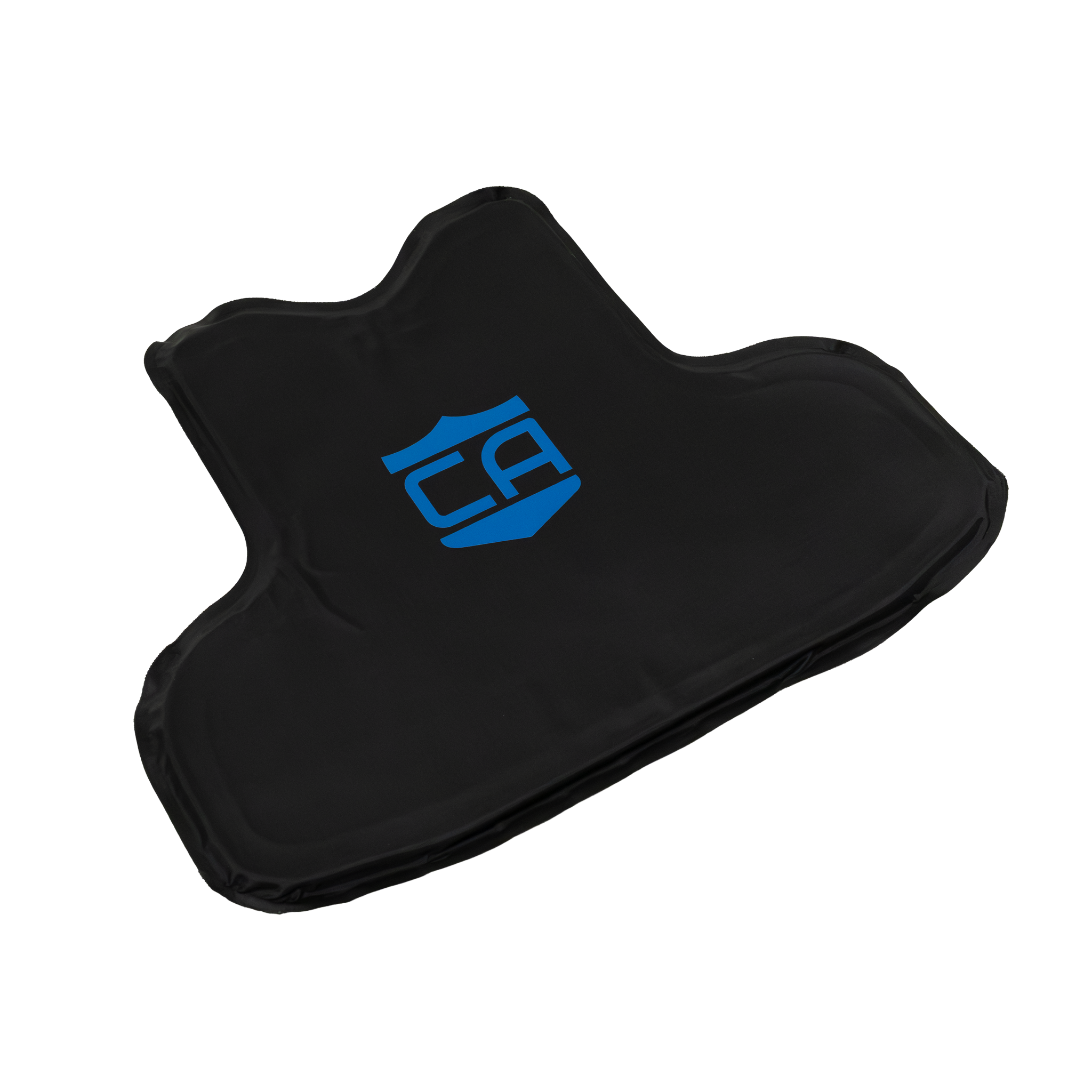

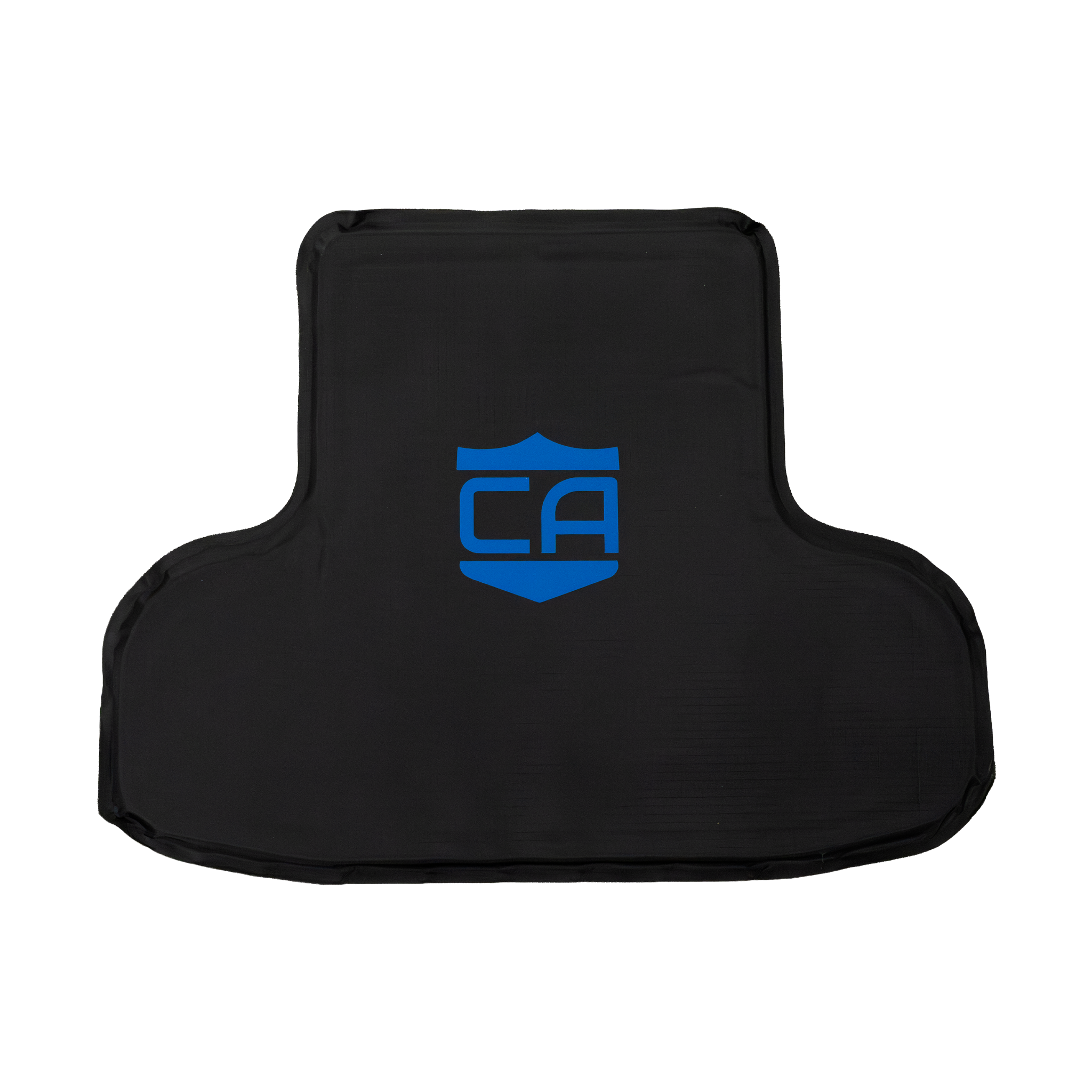

• (2) CaliberX Wrap Around Soft Armor Panels (Front & Rear) – Available in CaliberX Core or CaliberX Pro

Choose Your Protection

CaliberX Core Soft Armor

Built for dependable everyday protection, durability, and value.

• 1.59 lb/ft² areal density
• 0.44” panel thickness
• Balanced comfort and durability
• Excellent value for everyday wear

CaliberX Pro Soft Armor

Designed for reduced weight, enhanced mobility, and a thinner low-profile fit.

• 1.1 lb/ft² areal density
• 0.28” ultra-thin profile
• Lightweight and highly flexible
• Optimized for mobility and concealment

CaliberX Core vs Pro Comparison

CaliberX Soft Body Armor Features

• NIJ Level IIIA / HG2 Rated – Tested to NIJ 0101.06 Level IIIA and NIJ 0101.07 HG2 standards for handgun threat protection
• Multi-Hit Ballistic Protection – Designed to absorb and disperse repeated handgun impacts
• Wraparound Coverage – Enhanced front, rear, and side ballistic protection
• Lightweight & Flexible – Engineered for comfort, mobility, and extended wear
• Advanced Proprietary Materials – Built using Caliber Armor’s specialized soft armor construction
• Durable Armor Construction – Reinforced internal stitching with water-resistant ripstop panel covering
• TSA Approved
• Made in the USA – Manufactured in Louisville, Kentucky using domestic materials

Ballistic Resistance & Threat Protection

CaliberX Wrap Around Soft Body Armor Panels are independently tested in accredited laboratories under NIJ-STD-0101.06 Level IIIA and NIJ 0101.07 HG2 testing guidelines, including additional special threat testing protocols.

Tested to stop multiple common handgun threats, including:

• 9mm FMJ
• .44 Magnum SJHP / JHP
• .357 SIG

Panel Sizing & Carrier Compatibility

Choose the CaliberX Warp Around Panel size that corresponds with your carrier size. The panel dimensions below are listed in inches and are designed to provide proper coverage and compatibility across Caliber Armor carrier systems.

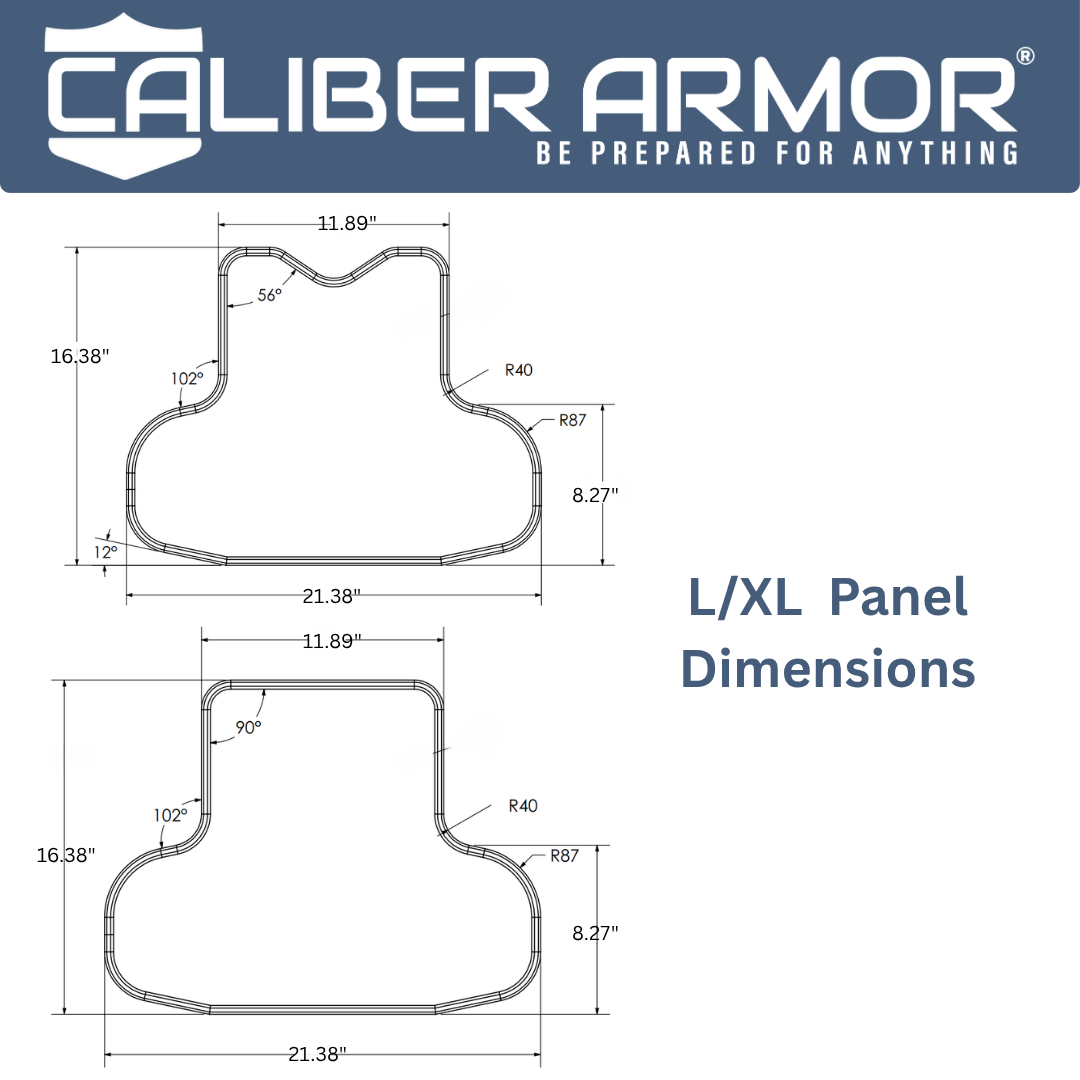

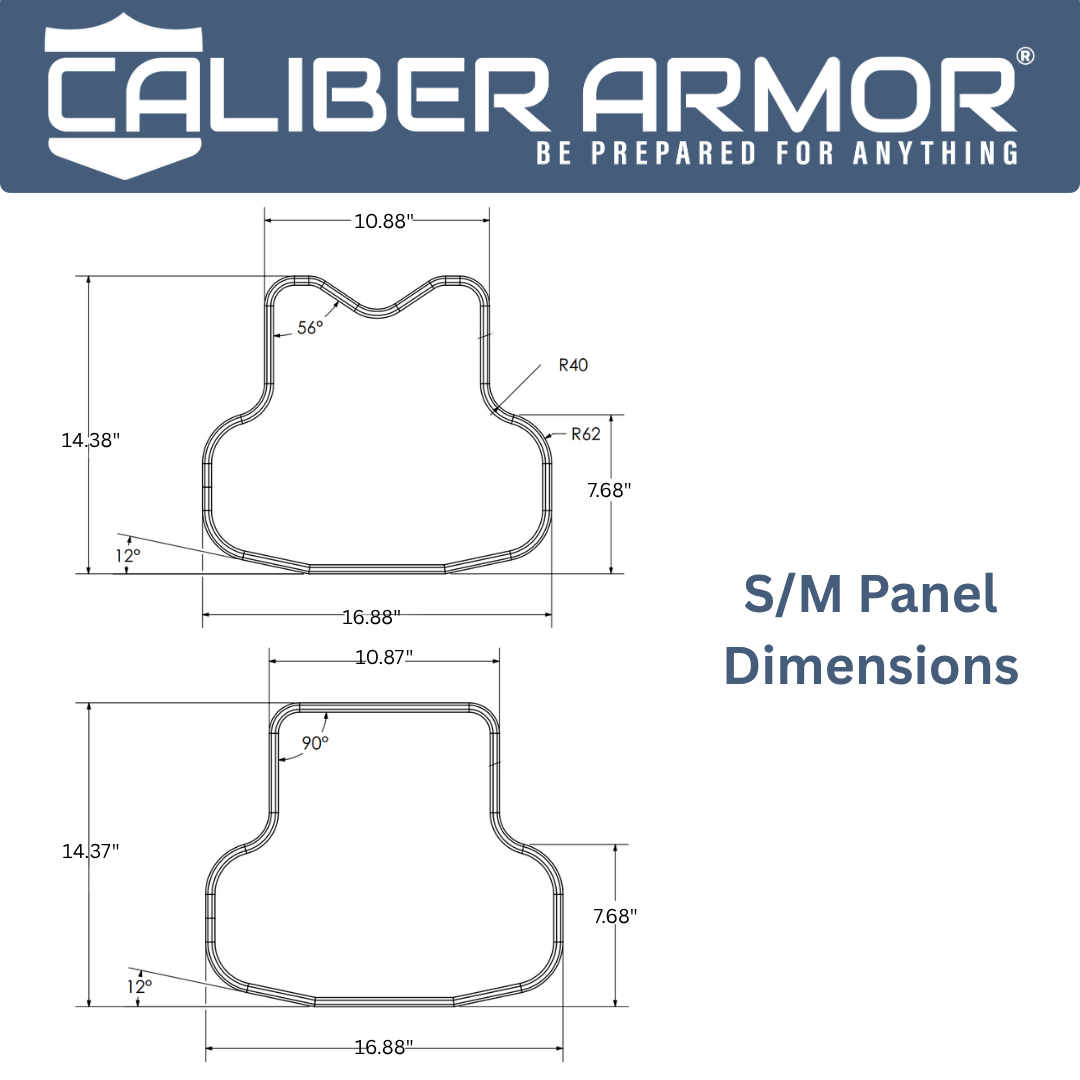

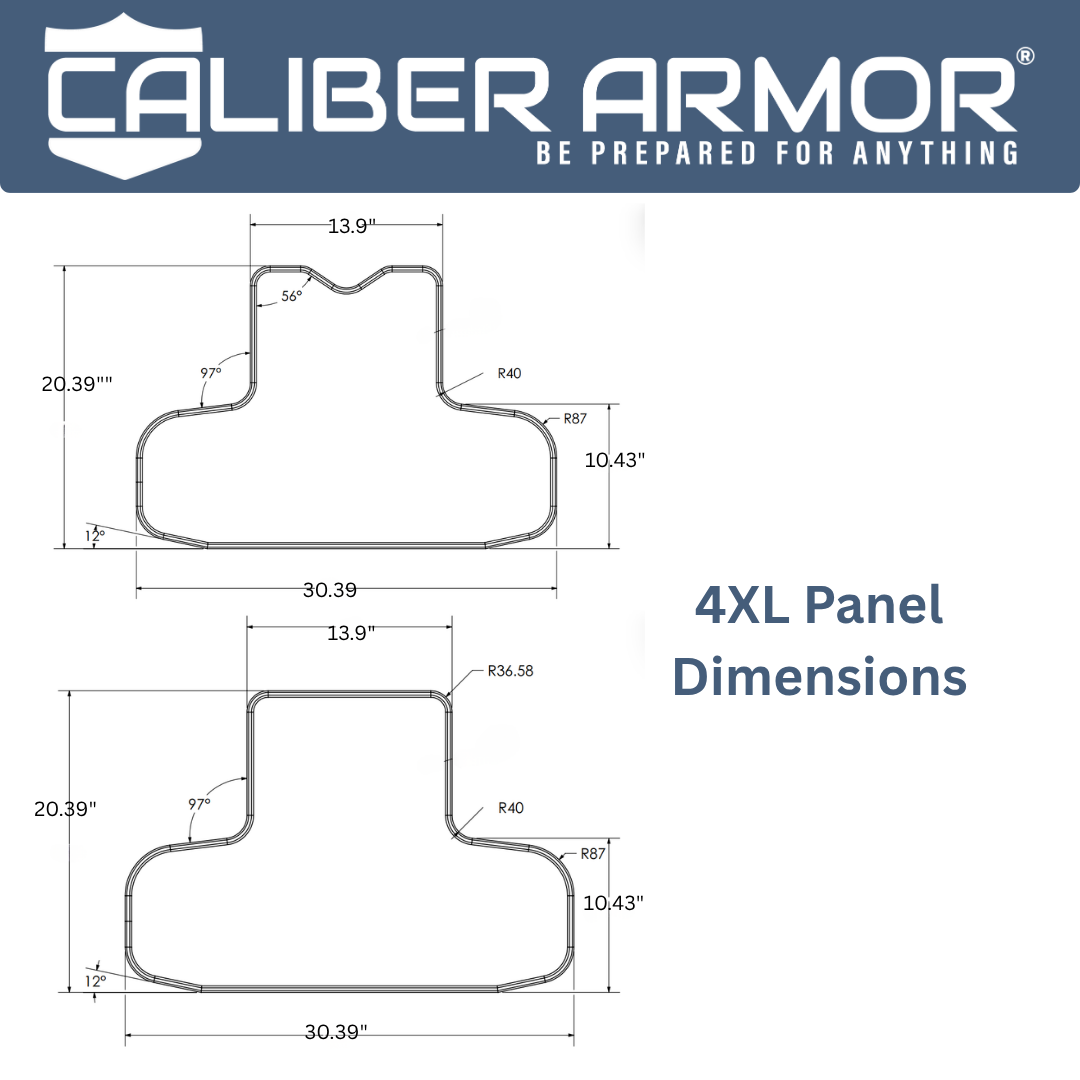

Panel Measurements

Model	Carrier Size	A	B	C

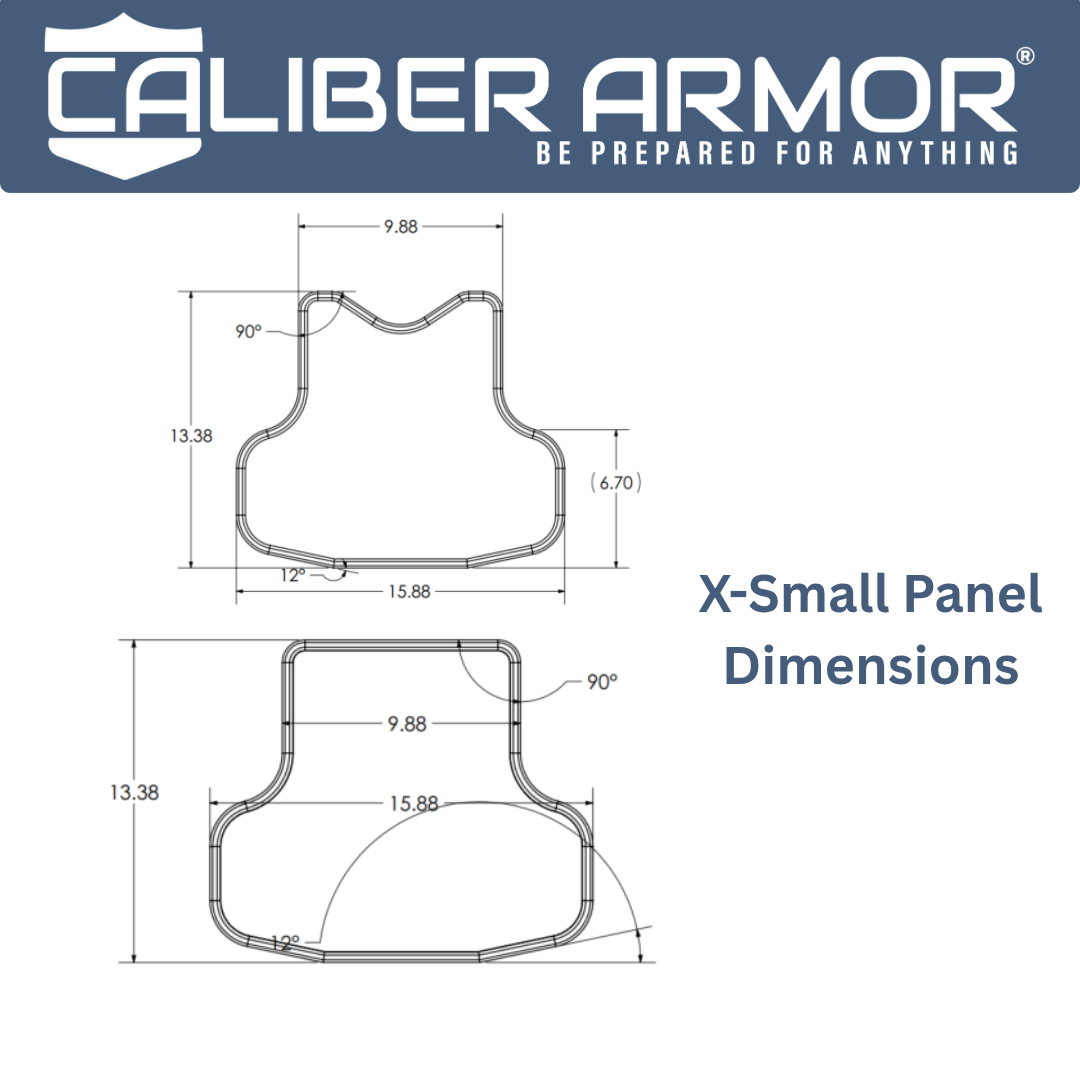

C1	XS	15.88"	9.88"	13.38"

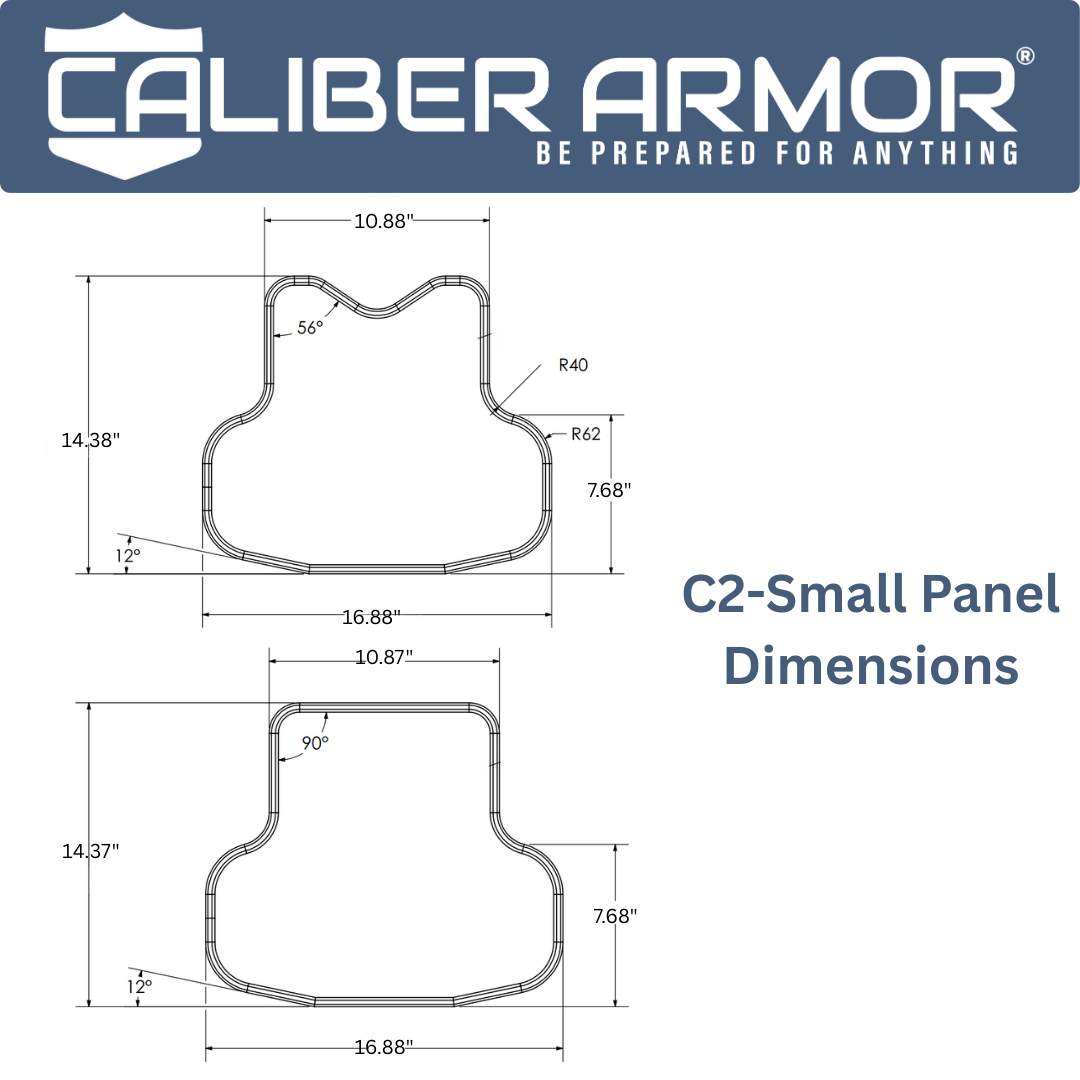

C2	SM	16.88"	10.88"	14.38"

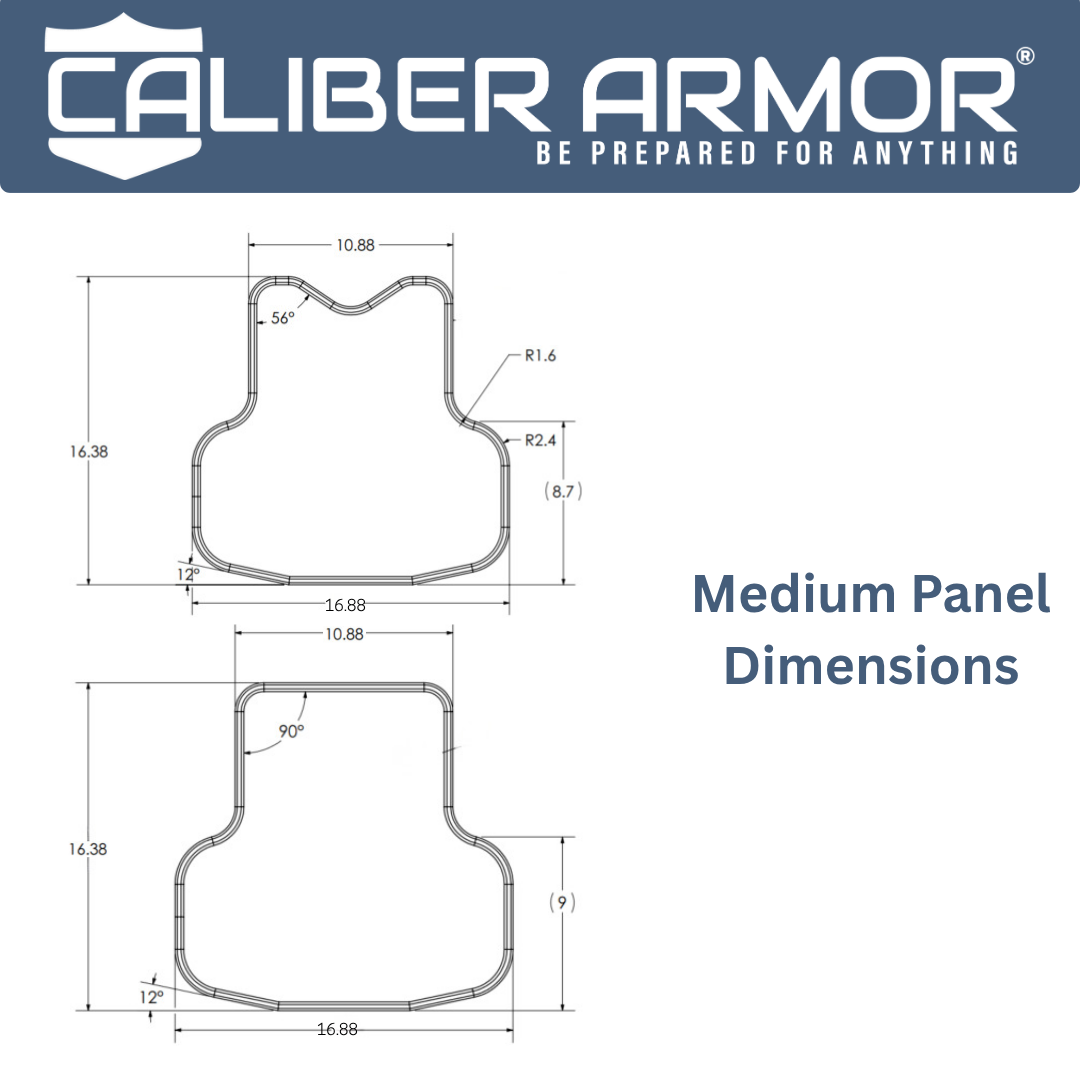

C2L	MD	16.88"	10.88"	16.38"

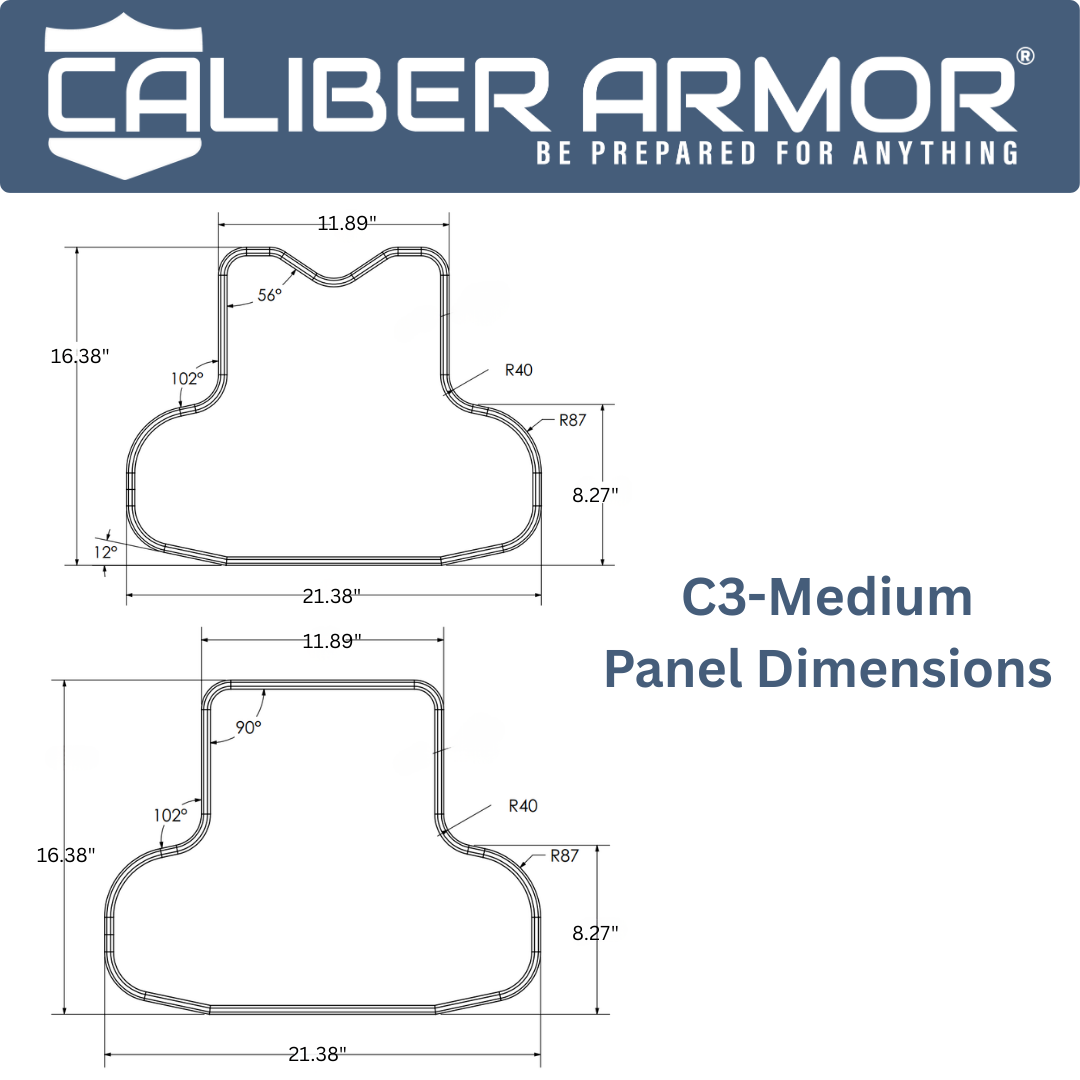

C3	LG	21.38"	11.89"	16.38"

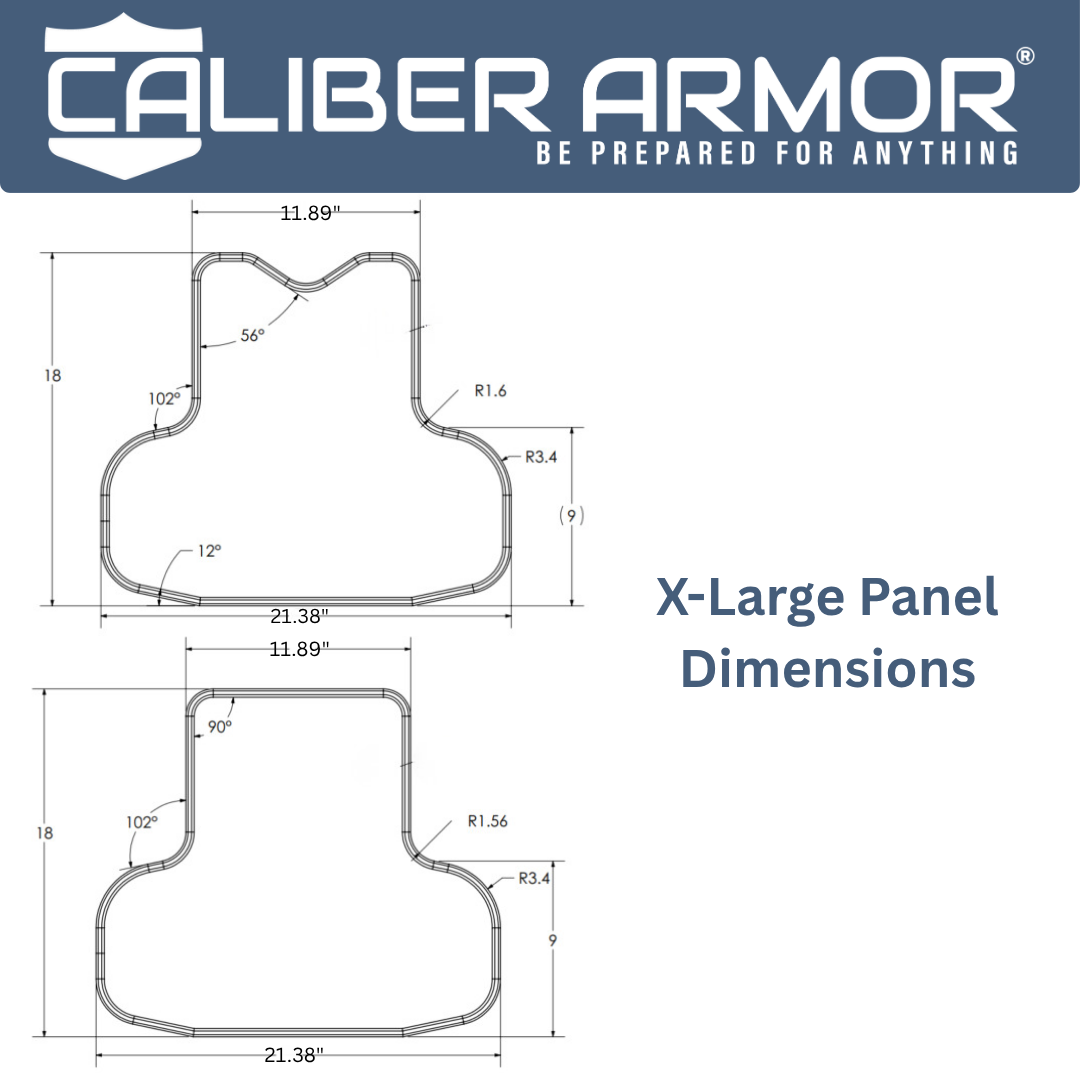

C3L	XL	21.38"	11.89"	18.00"

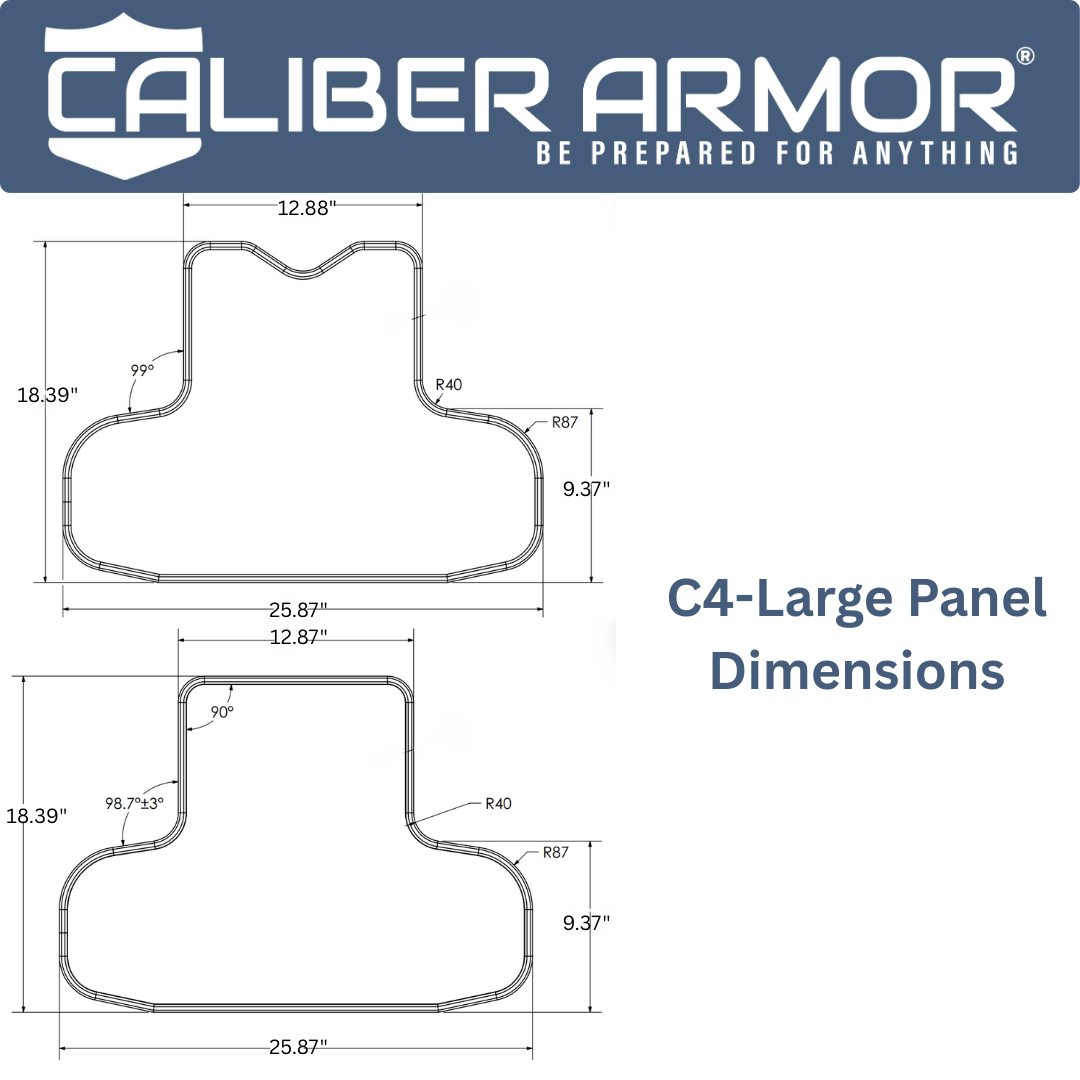

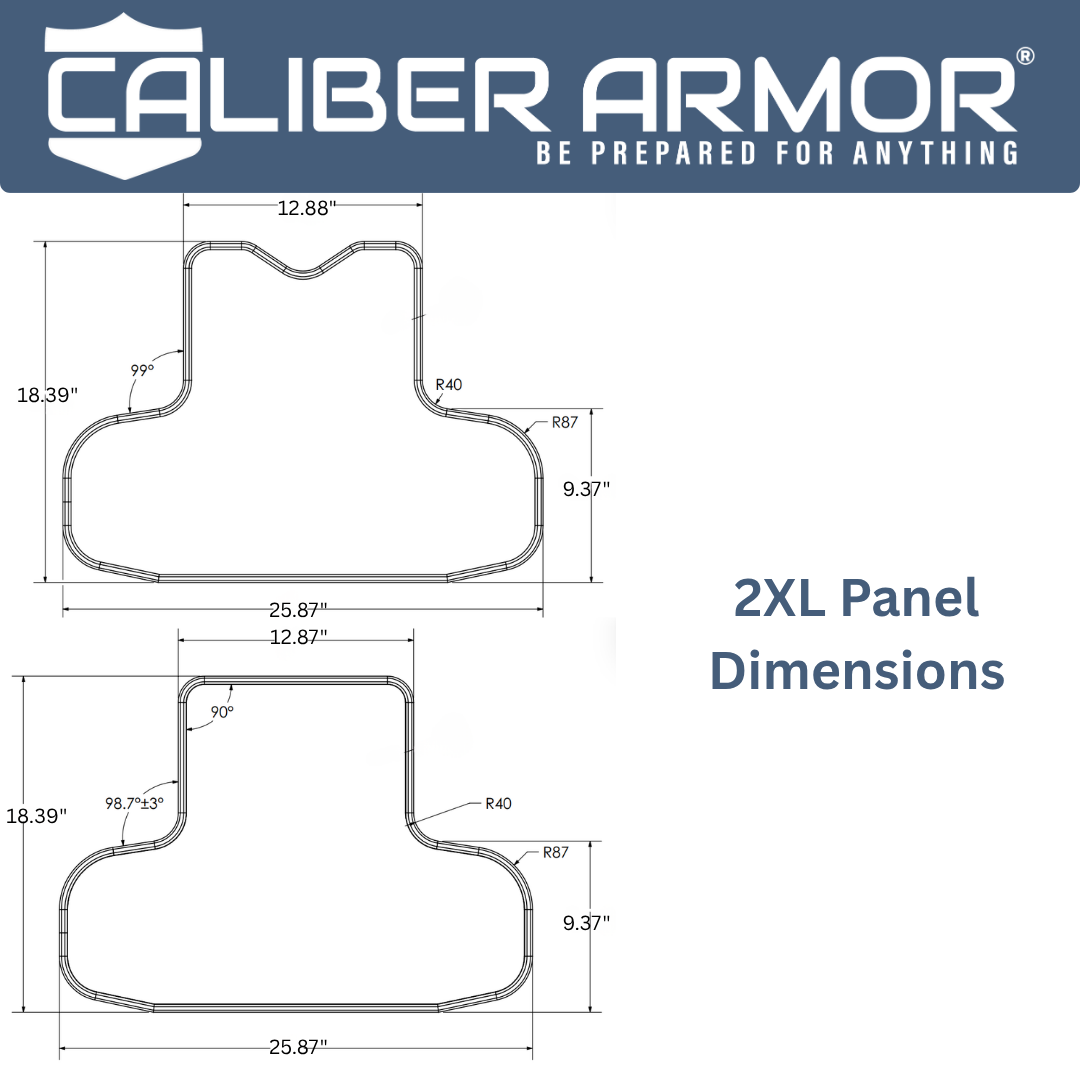

C4	2XL	25.87"	12.88"	18.39"

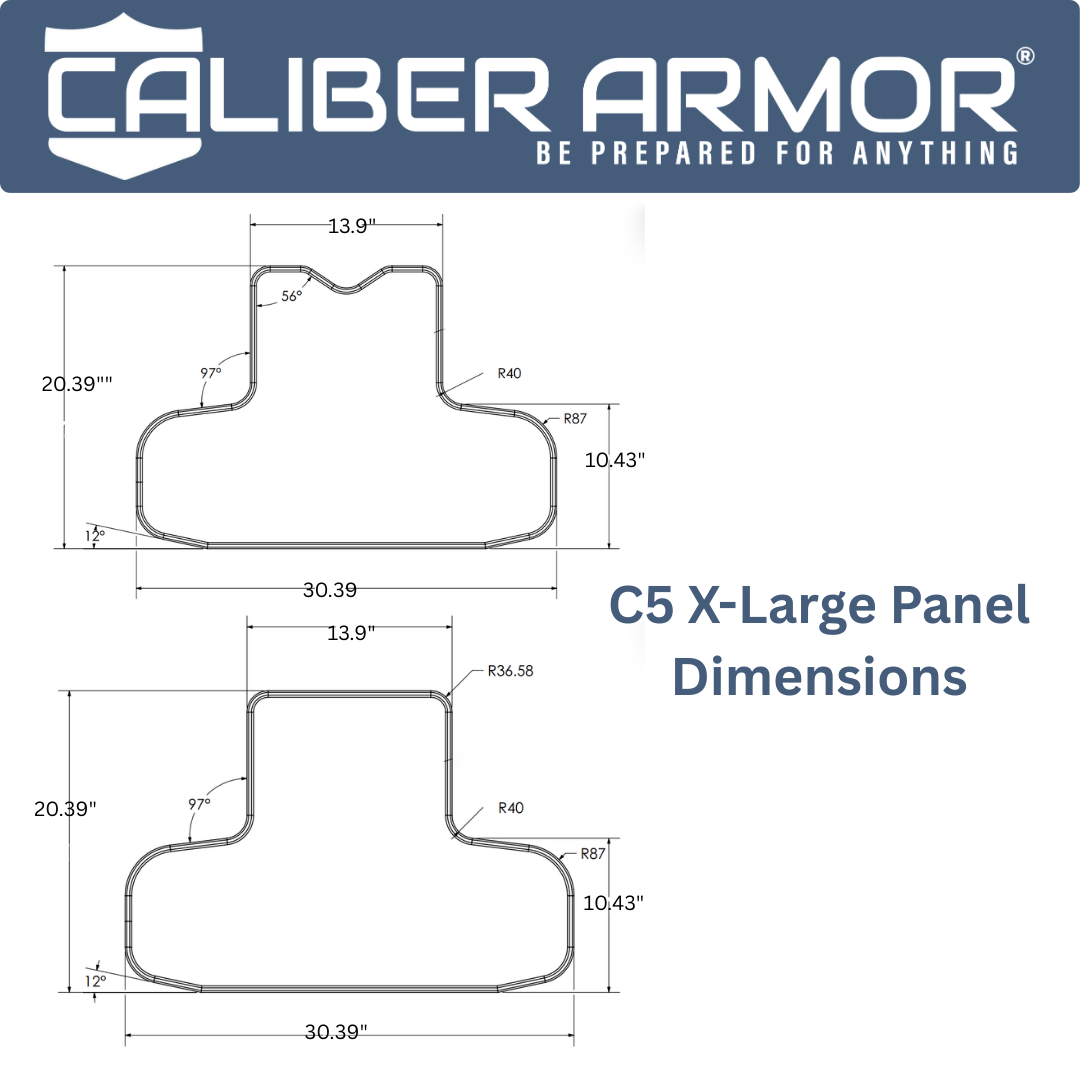

C5	4XL	30.39"	13.90"	20.39"

See the panel sizing diagram above for measurement locations.

Carrier Compatibility

CaliberX Warp Around Panels correspond directly with the sizing of our M.O.D. and Patrol carriers, making it easy to select the appropriate panel for your carrier.

The sides of the Warp Around Panels can be worn flush or overlapped, allowing you to adjust the fit and coverage based on your preferred configuration.

Covert Carrier Compatibility

• Covert Concealable Vest – S/M: CaliberX Warp Around Panel – SM
• Covert Concealable Vest – L/XL: CaliberX Warp Around Panel – LG
• Covert Concealable Vest – 2XL: CaliberX Warp Around Panel – 2XL

For detailed sizing, fit, and wear recommendations, refer to our Care, Use & Fitting Guide.

Why Choose CaliberX Soft Body Armor?

CaliberX combines lightweight comfort, advanced ballistic materials, and American craftsmanship to deliver dependable soft body armor trusted by law enforcement, security professionals, prepared civilians, and first responders.

Every CaliberX armor panel is proudly designed and manufactured in the USA using premium domestic materials for proven protection and long-term reliability.

Protection you can trust when it matters most.
