Caliber Armor

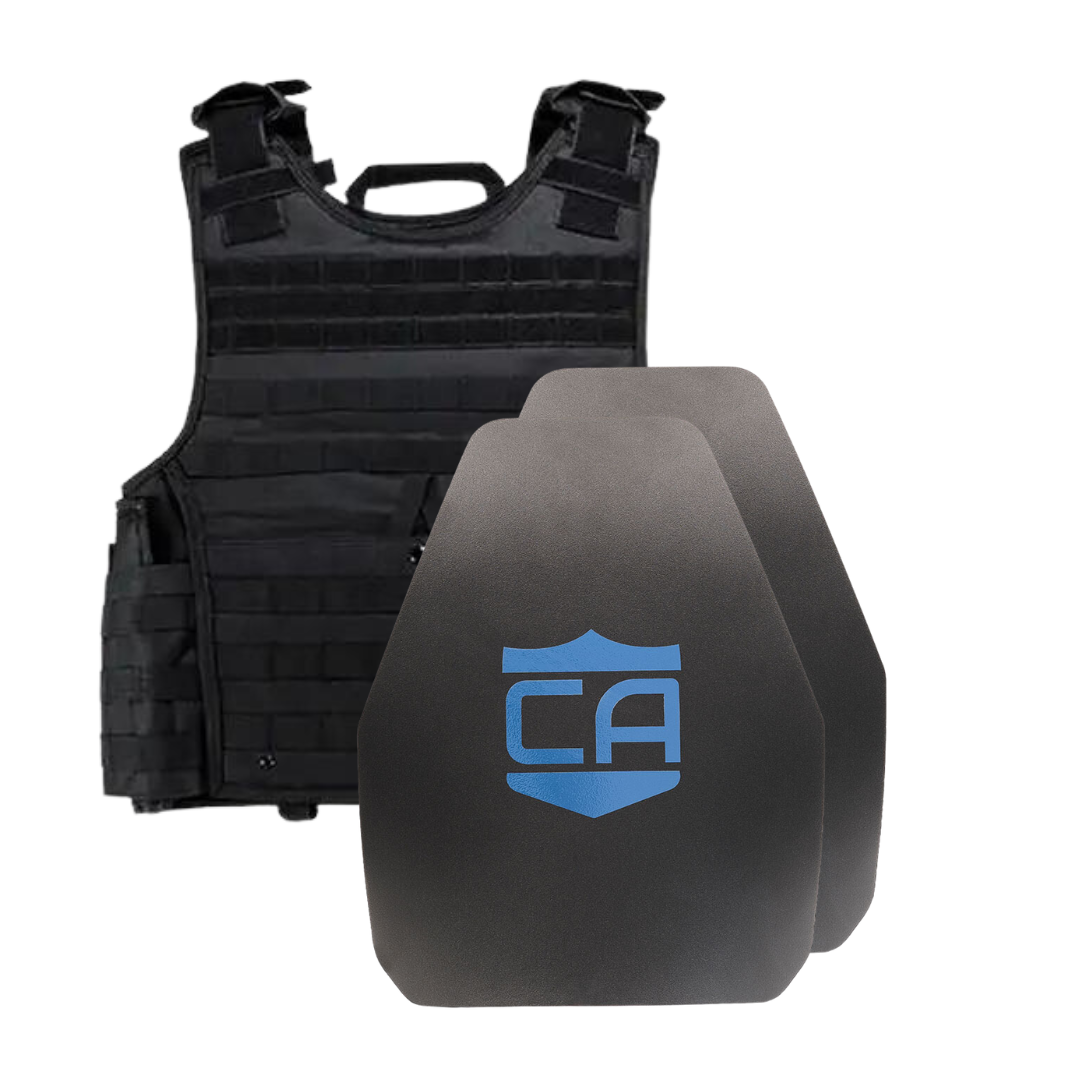

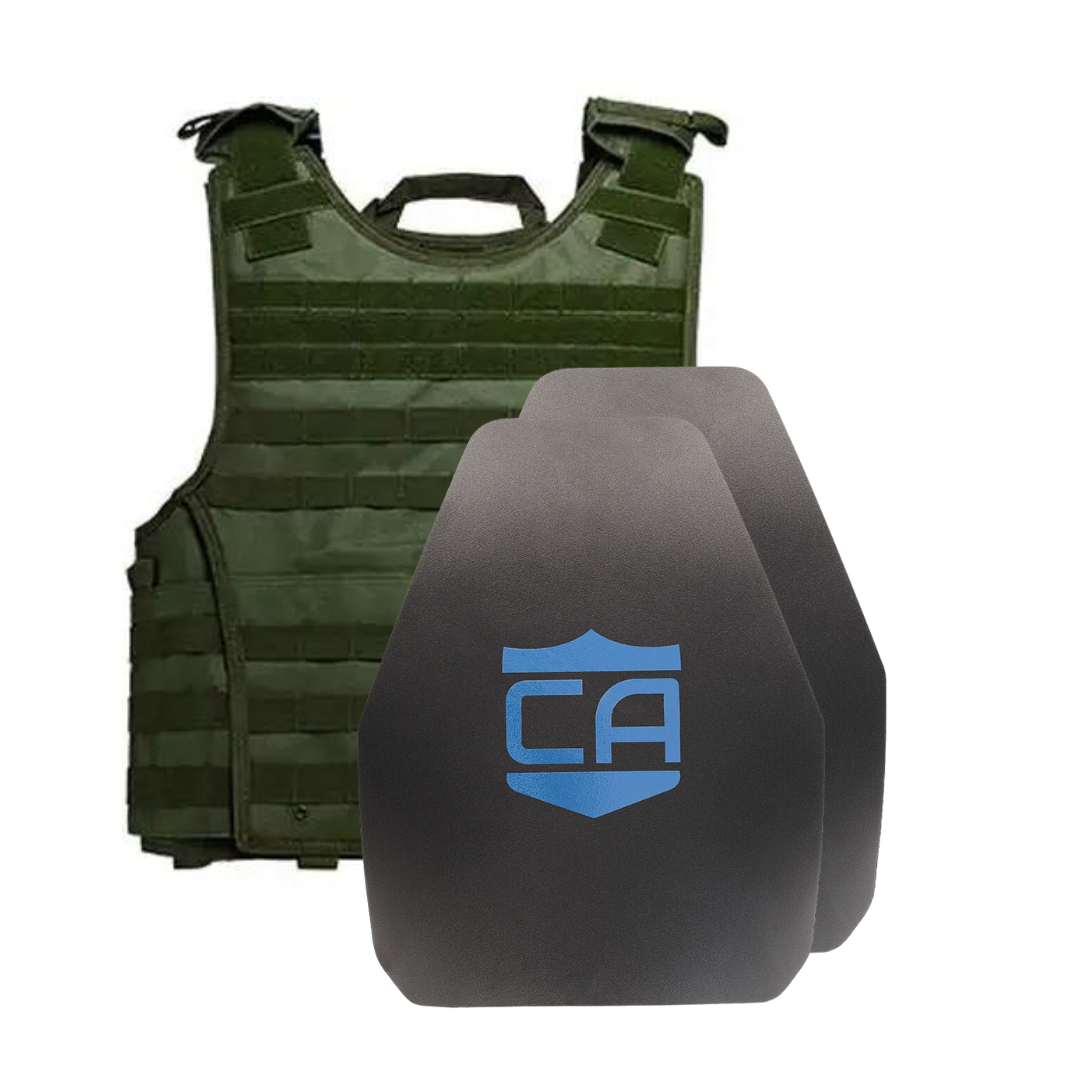

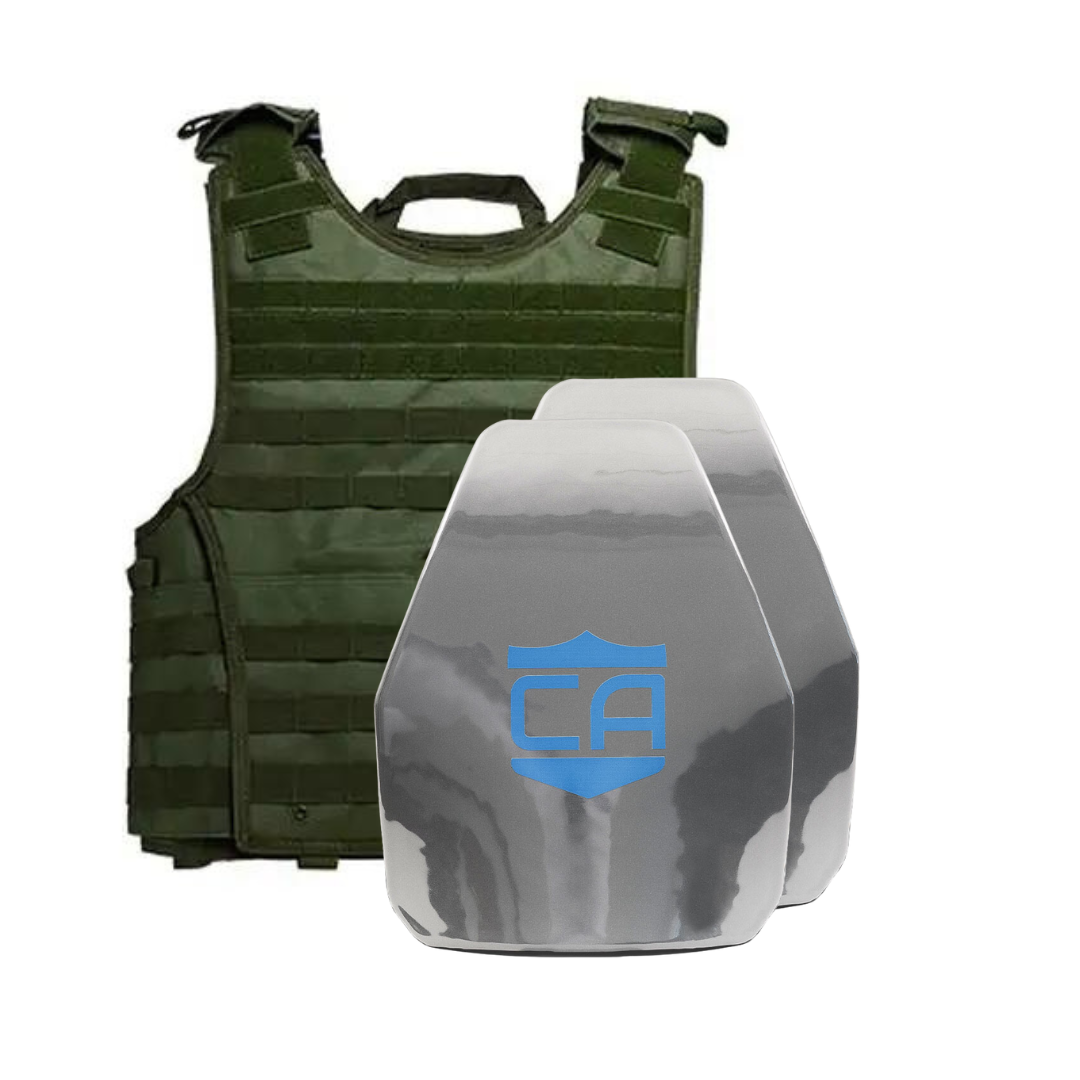

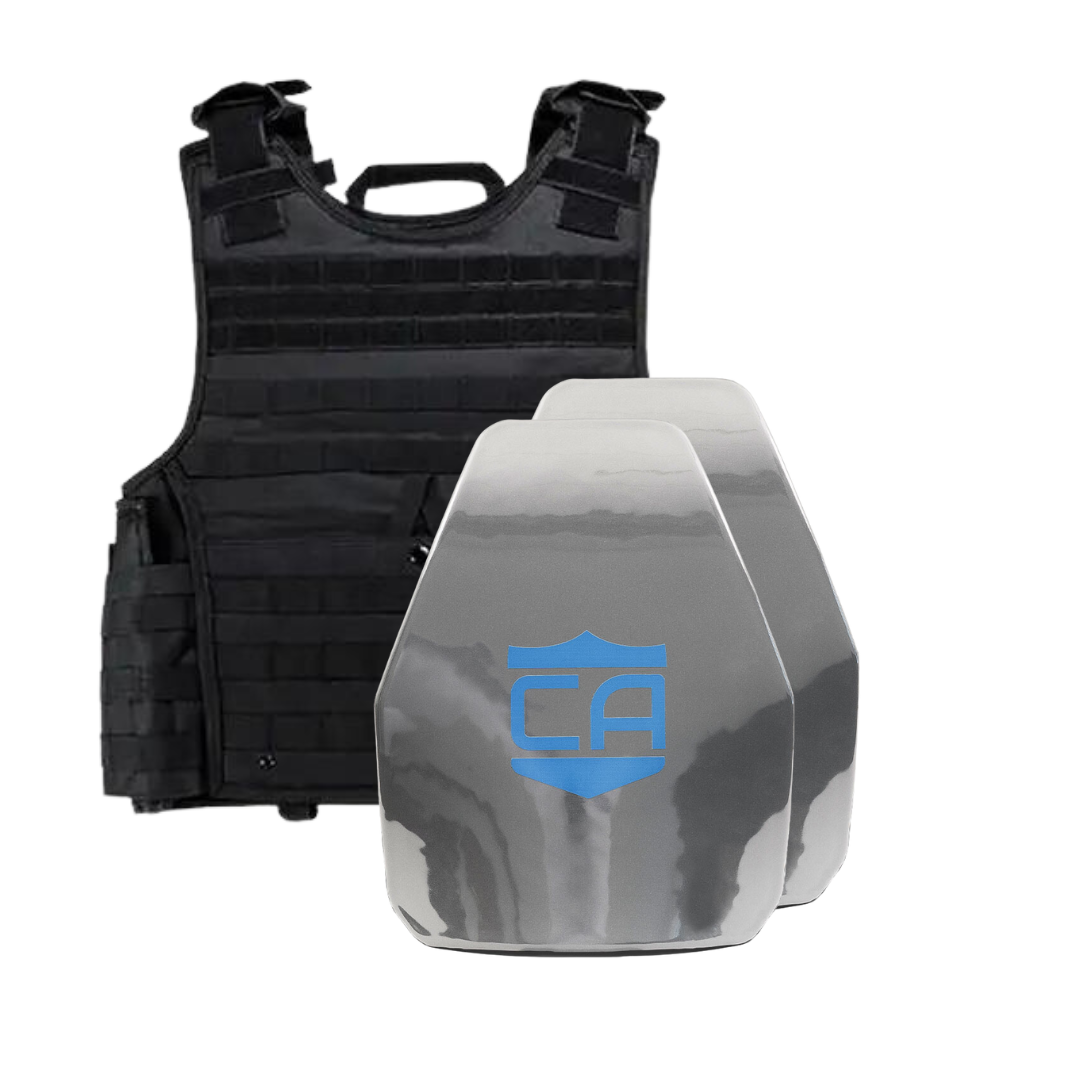

Caliber Armor AR550 III+ VISM Expert 8x10 Body Armor Package
VISM Expert Plate Carrier Features
- MOLLE webbing on the front, back and sides allows custom configurations
- Adjustable shoulder straps with quick connect buckles and hook and loop fasteners
- Two padded shoulder covers with MOLLE webbing and loops for communication cable routing
- MOLLE hook and loop rows on front and back for attaching identification patches
- Easy access plate pockets
- Ballistic plates/soft armor not included
Available in Black, Tan and Green
Cummerbund Size: Adjustable up to 44" (measure around your navel)
AR550 Level III+ Body Armor Features
- Ergonomic Single Press Multi-Curve design at no extra cost
- Special PolyShield Spall Protection Coating
- Shooters Cut
- Rated and tested to: NIJ STD-0101.06 Level III and special threats listed on the new NIJ STD-0101.07 Draft Rifle 2
- Proudly made in Louisville, Kentucky, U.S.A
We have gone above and beyond to bring you steel body armor of a HIGHER CALIBER.
This can be seen with our bend process, our fragmentation protection coating and our finishing details. This was the material that we started with back in 2012 and have the most experience with. We’ve seen it, done it, we’ve improved it.
Steel Body Armor provides great protection that can stop multiple projectile hits. We have been working with different levels of abrasion resistant (AR) ballistic steel for years and have not found a better product than our AR550 Steel Body Armor Plates. This armor is rated at a level III+ as it can defeat special threats like M855 rounds.
All of our steel plates come in one ergonomic curve option. We have worked with LE and first responders to design a curve that you can be comfortable wearing. We provide this at no additional cost. What is unique about the way that we bend our steel is important too. We have designed a press that creates a multi curve bend in ONE step. Why is this important? When you do multiple bends to achieve a multi curve, it puts extra strain on the plate which can weaken it. We have replicated the same curves that you have seen in multi curve ceramic armor for years.
Our aggressive Shooters Cut body armor plates shaves off weight while still providing enough coverage to protect your vital organs. Use our CaliberX™ Soft Armor Backers for even more protection and comfort.
Our standard AR550 plate comes coated to protect the plate from rust and the elements. One concern with Steel Armor is fragmentation containment. Some of that fragmentation is contained in the armor’s plate carrier, but there still is a risk of lethal shrapnel. We HIGHLY recommend our Caliber PolyShield Spall Protection. Caliber Armor has years of experience with specialty coatings and has formulated an anti-spall coating specifically for our armor application. This addition to your steel plate gives you peace of mind when wearing steel armor.
Weights for AR550 Steel Body Armor: 8" x 10" – 5 lb 14.8 oz with PolyShield Spall Protection
NIJ STANDARD-0101.06
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard- 0101.06 Level III and also tested to with special threats from the new NIJ Standard- 0101.07 Rifle 2.
MANUFACTURING TOLERANCES:
Thickness dimensions are +-1/8 in. Width and length dimensions are +0.00 to 0.25 in. All weights are +- 5%.
